Enzymatic conversion of chitin from crab shells and insect exoskeletons

Chitin is an ubiquitous natural structural polysaccharide and has great potential as a natural raw material due to its high availability. As a non-soluble polymer, however, the field of application is very limited. For many applications in solution, the smaller, partially acetylated analogue chitosan is required. Chitosan is usually produced from chitin by a chemical process using strong acids and bases.

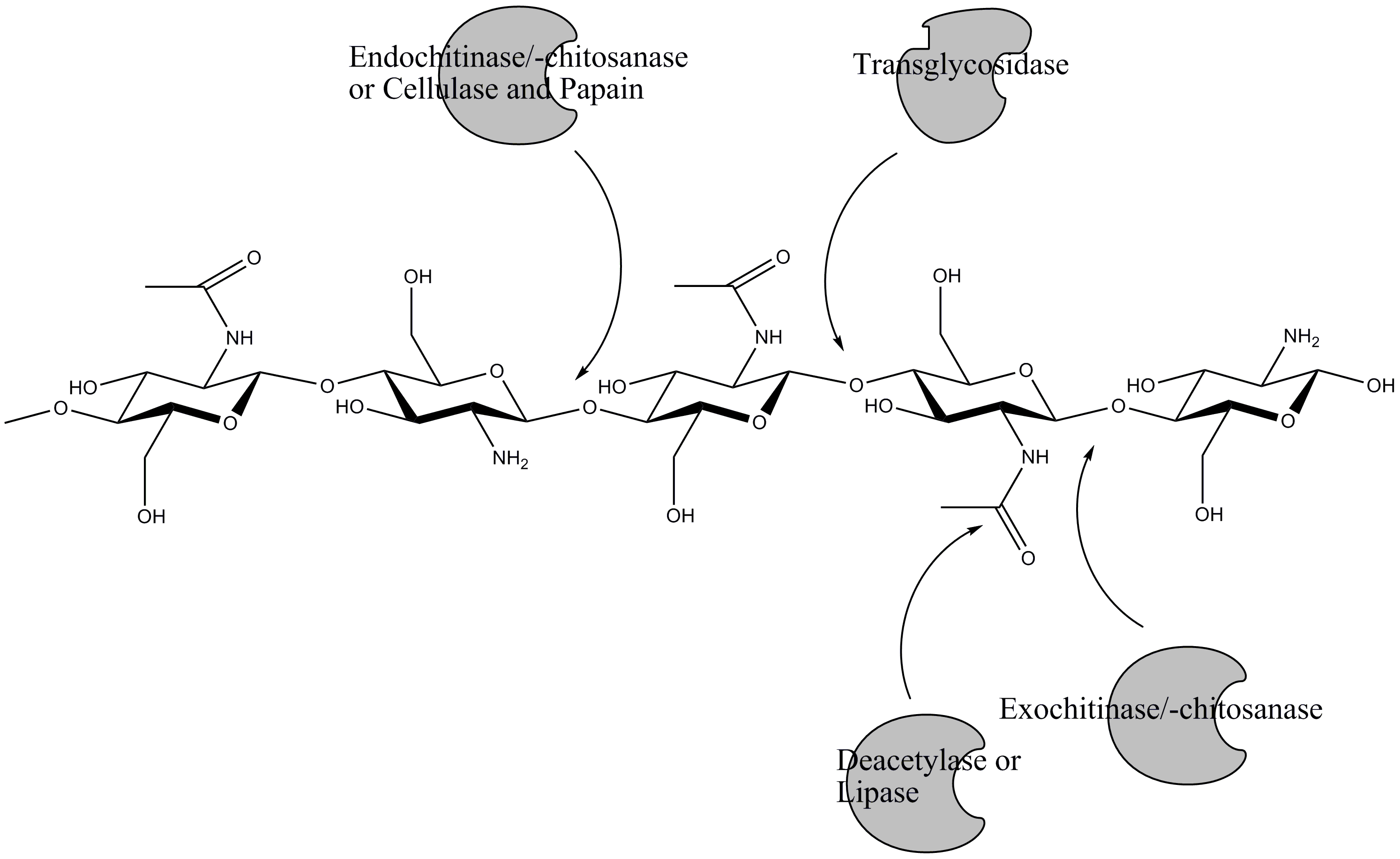

Enzymatic conversion of chitin.
Enzymatic conversion of chitin.

Chitinolytic enzymes from microorganisms

The Industrial Biotechnology Group uses biocatalysts to produce chitosan, chitooligomers or N-acetylglucosamine from chitin. The chitinolytic enzymes originate from microorganisms that were specifically screened in chitin-rich habitats. In addition to individual chitinases, non-chitinolytic enzymes (lipases, proteases,...) or enzyme cocktails can also be used simultaneously.

Integration in scalable process engineering processes

In order to use the enzymes as efficiently as possible, activity and stability tests are carried out at different pH values and temperatures. To optimize the biological component, the enzymatic activity is embedded in a controllable and scalable process engineering process. For example, by using immobilisates, product inhibition, which is not unusual for chitinolytic enzymes, can be avoided. The biocatalyst can also be used in several cycles. A decisive requirement is the possibility of being able to apply the process later on a pilot plant and pilot scale. Process engineering investigations are also carried out in order to transfer the process to larger scales. The "Industrial Biotechnology" working group develops scale-up using dimensionless key figures, so that kinetics and yields of enzymatic or microbial processes can be transferred 1:1 to the next larger scale.

Purification and modification

In addition to suitable purification strategies, we offer the development of a biocatalytic process for the modification and hydrolysis of natural substances. The process to be developed can be specifically designed for use in a later commercial, large-scale process. If required, commercially available or specially isolated microorganisms or enzymes can be used. Our research group has the necessary know-how to screen for specific microorganisms and to identify the enzymes relevant for a specific reaction.

Range of services

  • Screening and recombinant expression of chitinolytic enzymes such as chitinases or chitin deacetylases
  • Investigation of new chitin sources for the synthesis of chitosan, N-acetyl-glucosamine and glucosamine
  • Process development and scale-up

Presentation "Insect waste makes textile processing more sustainable"

Presentation held at the 3rd Bioeconomy Congress on September 21, 2020 in the session: Innovative fibers and technical textiles derived from biomass.

Privacy warning

With the click on the play button an external video from www.youtube.com is loaded and started. Your data is possible transferred and stored to third party. Do not start the video if you disagree. Find more about the youtube privacy statement under the following link: https://policies.google.com/privacy


Vainshtein, Y., Werner, N., Kirstahler, P., Glanz, K., Grumaz, C., Hahn, T., Zibek, S., Sohn, K. 2020. Draft Genome Sequence of Andreprevotia sp. Strain IGB-42, a Chitinolytic Bacterium Isolated from a Soil Sample of an Anthill in Stuttgart, Germany. in: Microbiology Resource Announcements, Vol. 9, pp. e01454-19. DOI: 10.1128/mra.01454-19

Reference projects

ChitoTex – Development and production of new insect chitosans and chitosan-based functional coatings for yarns and textiles


The aim of this project is the development of insect chitin as a novel and sustainable source of chitin for use as a functional surface coating for yarns and textile surfaces, especially for technical applications.


Duration: March 2015 – March 2018

ChiBio – Development of an integrated biorefinery for the production of special and fine chemicals from waste containing chitin


The aim of this project is to refine fishery waste into nitrogenous platform and basic chemicals via the chitin intermediate.


Duration: November 2011 – October 2014
