Fraunhofer Lighthouse Project "Critical Rare Earths"

Rare earth metals

A forward-secure, affordable and predictable supply of raw materials is of utmost importance for the stability and prosperity of the economies of technologically advanced industrial nations such as Germany. Therefore the availability of metals such as the rare earths (formally: rare earth elements, REE) is of great strategic importance to make the competitiveness of producing goods in Germany, especially in the high-tech sector, less dependent on global commodity trading. In October 2010, the Federal Republic of Germany published its commodity strategy for securing its future supply of raw materials; the European Commission did so in 2008 and 2011. The respective commodity strategies are essentially based on the following three pillars: (1) trade and commodity diplomacy, (2) domestic extraction of raw materials, and (3) resource efficiency, recycling and substitution.

© Fraunhofer IGB

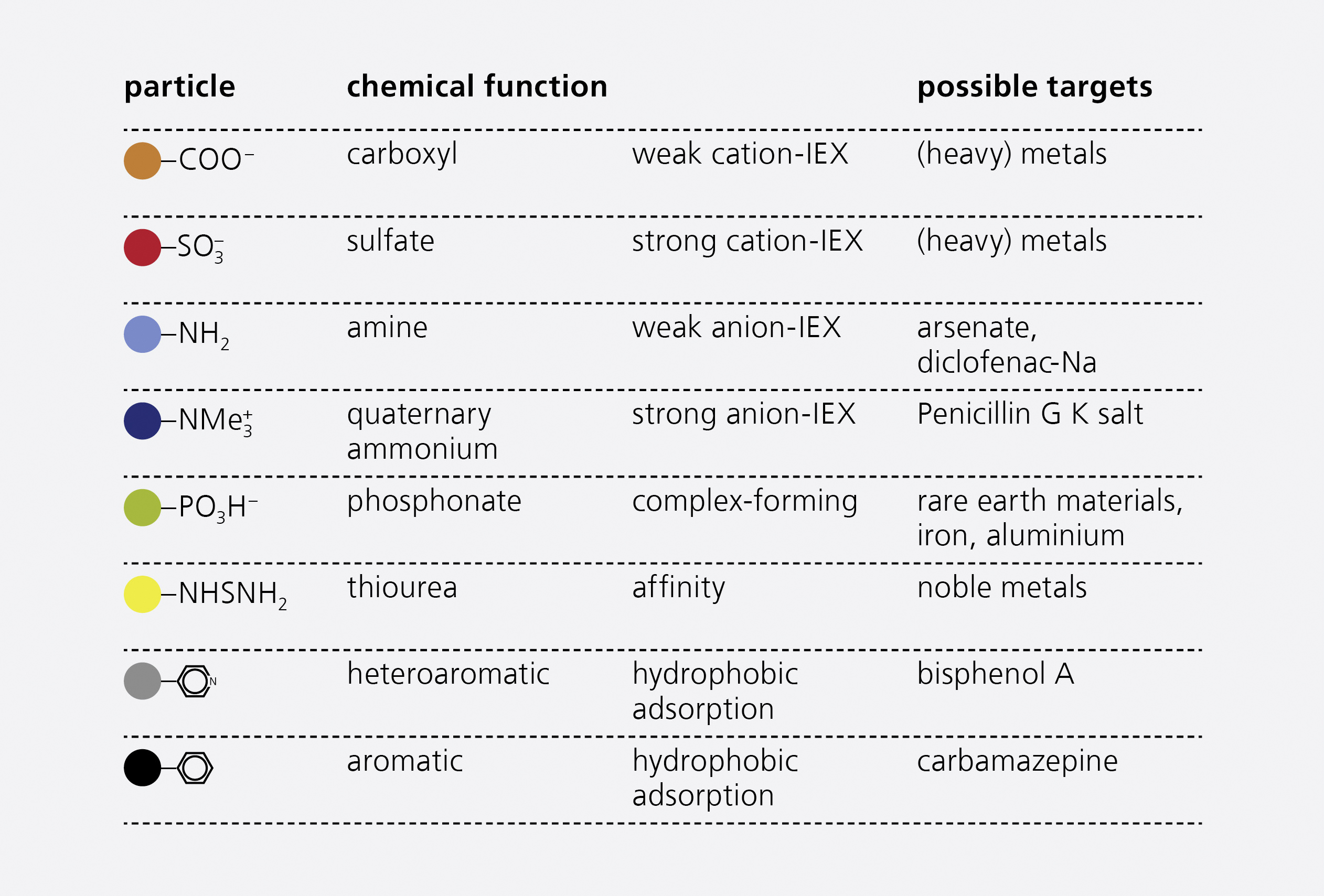

Particles with differing functional groups were employed in the membrane adsorbers.
© Fraunhofer IGB

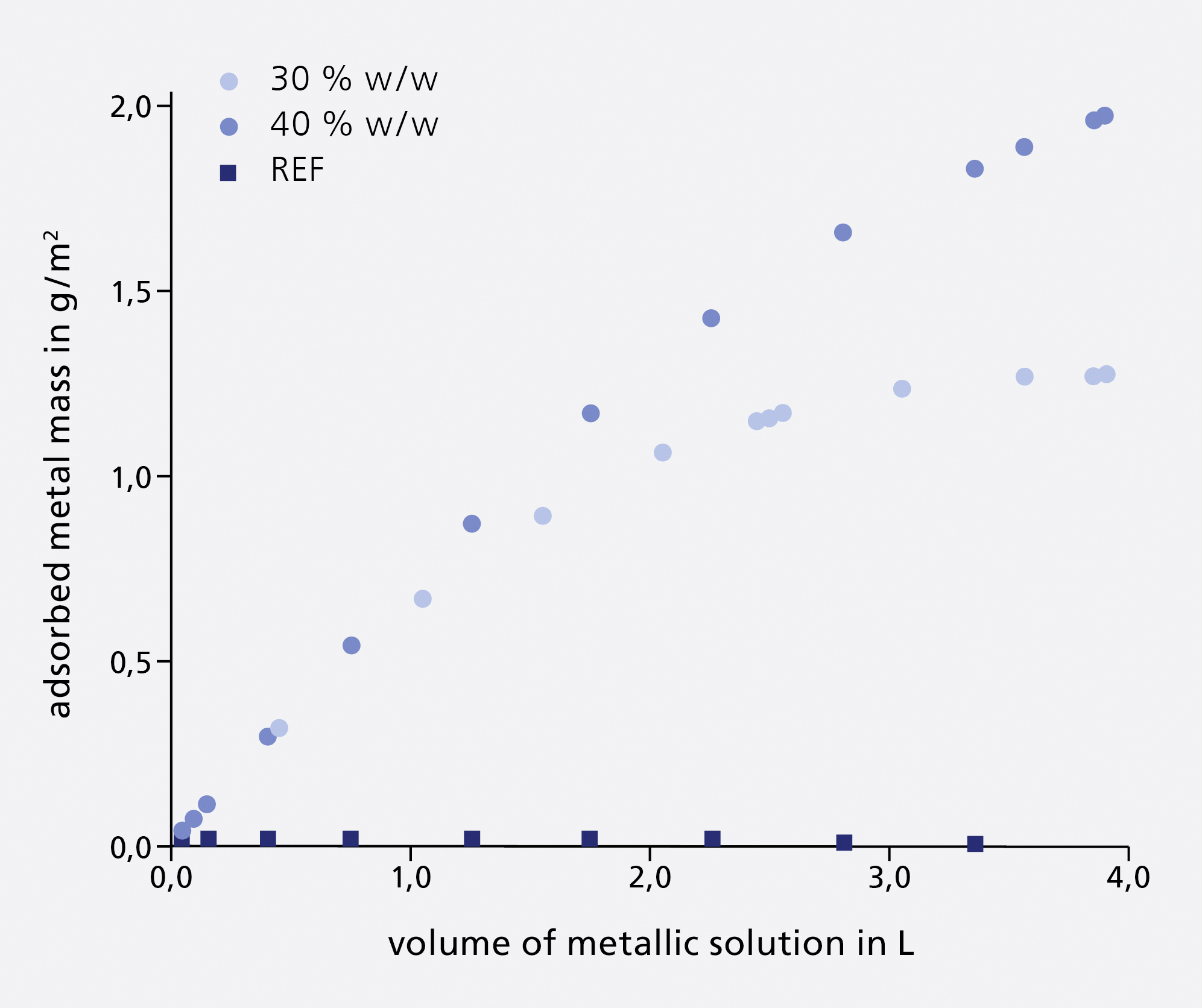

Adsorption of neodymium by particles with PO3H functional groups.
© Fraunhofer IGB

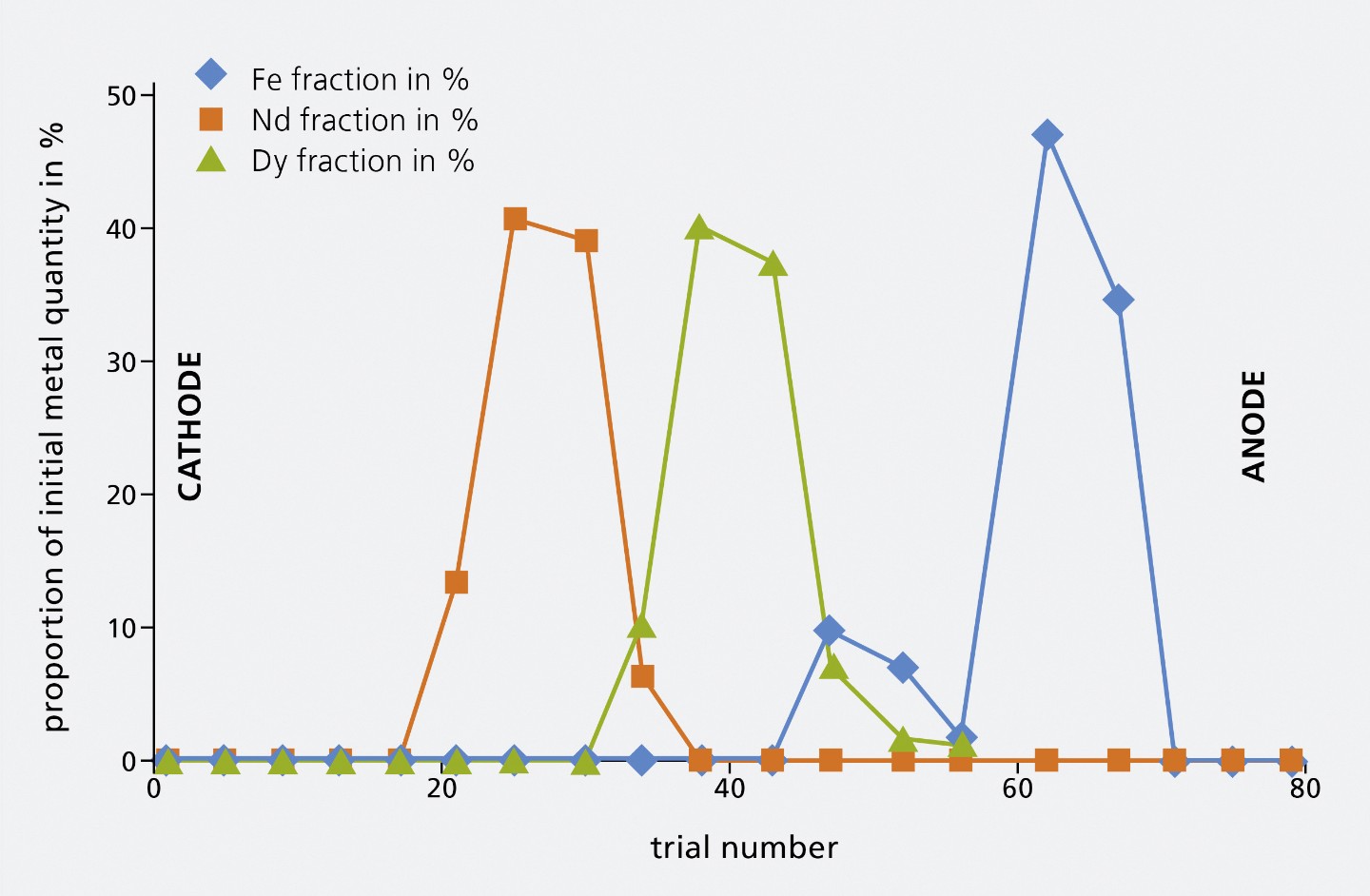

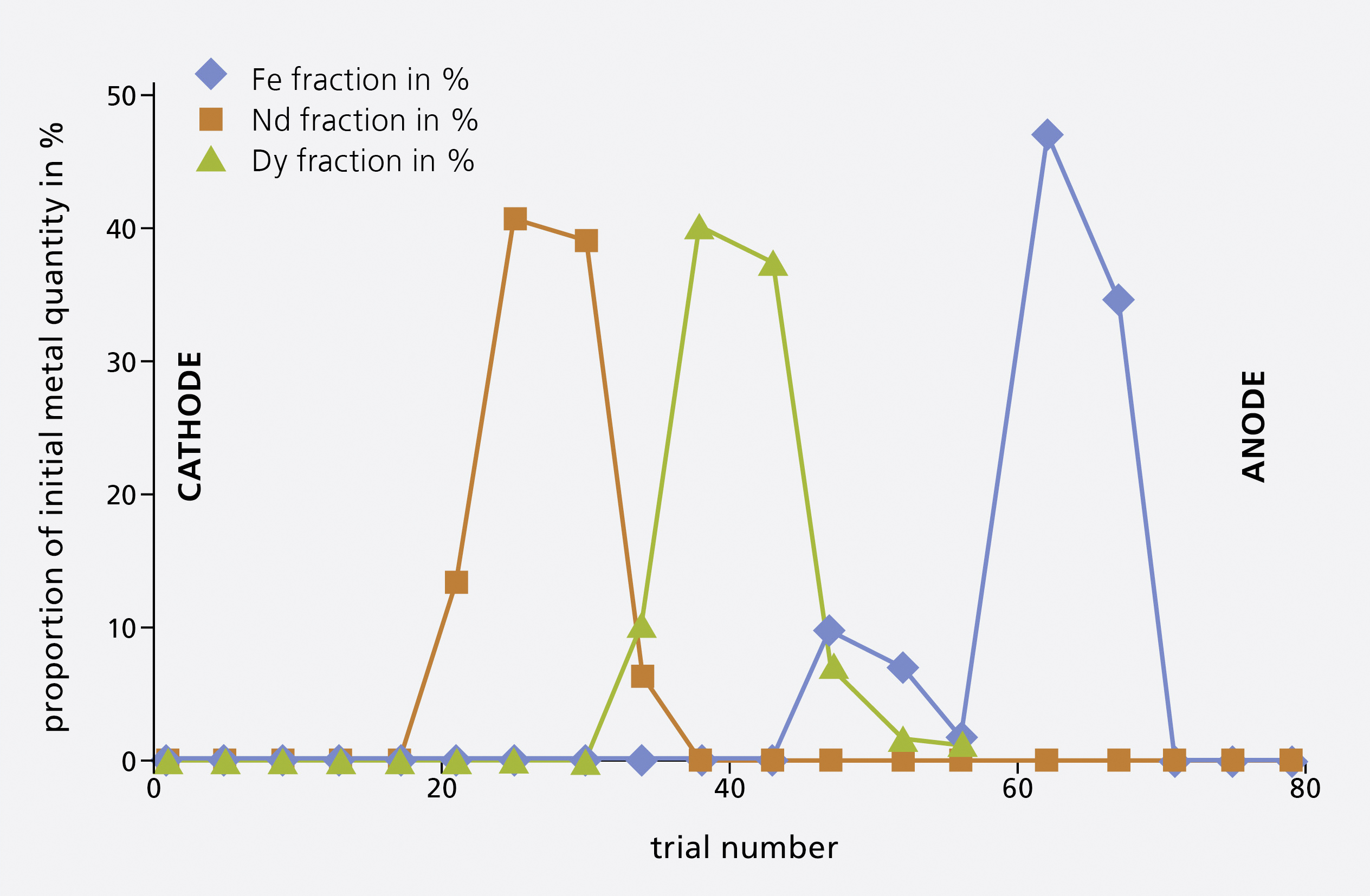

Separation of Fe, Nd, and Dy from eluate of membrane adsorption by means of FFE.

The Fraunhofer “Rare earths criticality” lighthouse project tackles the third pillar of commodity strategy, focusing on the use of rare earth metals in high-performance magnets. As well as the Fraunhofer IGB, the project involves the Fraunhofer institutes IWM IWM-H, IWU, IFAM, LBF and ISI, plus the ISC’s IWKS project group. Its mission is to halve the specific, primary demand for heavy rare earth elements for the specific application “Dysprosium-containing Nd-Fe-B permanent magnets and systems for electric motors”. To achieve this goal, the Fraunhofer-Gesellschaft is pursuing four priorities:

  • Material substitution – the project involves developing novel metallic phases, which require less or no rare earth metals, from simulation to manufacture
  • More efficient processes – work on refining magnet production processes, e.g. net-shape production, dysprosium-layer technology, grain-size tuning technology
  • Optimized design – here the focus is on the optimization of design from miniature electrical drives to the construction of demonstrators
  • “Design for recycling” – this sub-project looks at aspects of recycling and the re-use of electric motors as well as the extraction of rare earths from permanent magnets and production waste. The spotlight is on the treatment and recycling of magnets as recycled granules for magnet production, as well as material recycling for the production of the purest possible rare earth metals or metal oxides.

The Fraunhofer IGB’s contribution is the sub-project “Recovery of rare earth metals from permanent magnets and production waste”, with which has three specific objectives. First, to develop methods for recycling sintered magnets from used old electric motors are to be to recycled in such a way that the recycled granules can be added tomake up at least 10 percent of primary production of the magnets without affecting impacting on the magnets’ properties of the magnets. The second objective involves investigating to what is to identify the extent the recycled magnetic granules can be used for in the production of plastic-bonded magnets. The third objective involves granulating old magnets and combining them with production residues such as grinding swarf to make new products. The magnetic granules and the abrasive dust are dissolved and separated into their component elements using physical- chemical or biotechnological methods, allowing recovery of rare earths as, optimally, pure metals oder metal oxides.

© Rafael Krötz/Fraunhofer IGB

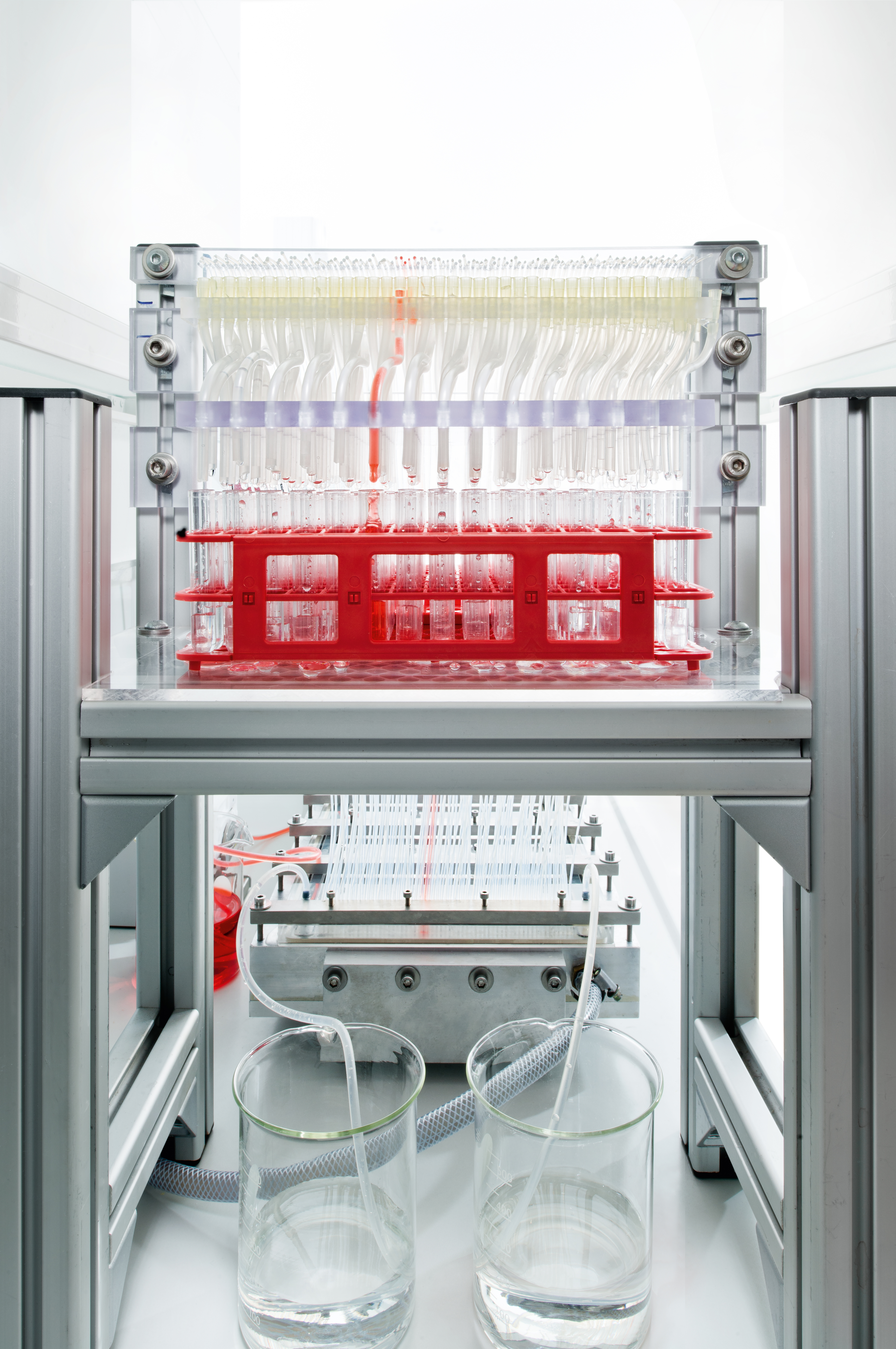

Free-flow electrophoresis prototype.

Project information

Project title

Fraunhofer Lighthouse Project "Critical Rare Earths"


Project duration

November 2013 – November 2017


Project partners

  • Fraunhofer Institute for Mechanics of Materials IWM
  • Fraunhofer Institute for Machine Tools and Forming Technology IWU
  • Fraunhofer Institute for Manufacturing Technology and Advanced Materials IFAM
  • Fraunhofer Institute for Structural Durability and System Reliability LBF
  • Fraunhofer Institute for Systems and Innovation Research ISI
  • Fraunhofer Institute for Interfacial Engineering and Biotechnology IGB
  • Fraunhofer Project Group Materials Recycling and Resource Strategies IWKS
