Smart infrastructure for smart cities

In particular, we focus on developments in the area of smart infrastructure. This requires a holistic consideration of all the aspects of municipal infrastructure, covering the areas of water, energy, food and waste. Fraunhofer IGB has many years of experience in integrated water management on the municipal and regional level, as well as in the use and development of new methods made available through the increasing digitalization of the water sector. This work focuses on the development of integrated strategies to help cities, towns and neighborhoods cope with heavy rainfall, drought and other extreme weather events caused by climate change.

Water management – New infrastructures for sustainable and energy-efficient water management

View into the water house.
© Rafael Krötz
View into the water house.

The water infrastructure systems of today's industrialized countries were created more than 100 years ago, i.e. they are based on the technological approaches of the time and are inefficient and expensive by today's standards. Conventional water infrastructure systems in the majority of industrialized countries are designed for the single use of water. With the exception of internal water recycling in industrial production facilities and initial approaches to regenerative water supply, there are no plans for reuse.

The technological challenges surrounding the topic of water are manifold. If existing resources are to be better used or new ones developed, innovative paths must be taken: Decentralized and adaptable infrastructure systems that collect and distribute water play just as decisive a role as possibilities for multiple use. Rainwater should be treated and developed as a new water resource. A needs-based purification of wastewater can be achieved with modern, cost-effective filter technology and adapted biological processes. In the ideal case, the ingredients of the wastewater are almost completely recycled in the purification process, both energetically and materially.

Fraunhofer IGB has already developed a wide range of technical innovations for sustainable water management. These are integrated into a holistic infrastructure concept that also takes into account energy supply and waste management. We adapt individual developments to the respective requirements of the region and combine different building blocks into an individual solution concept.

Nutrient recovery from wastewater

For the recovery of inorganic nutrients from municipal, industrial and agricultural wastewater, the IGB has developed an electrochemical process in which nitrogen and phosphorus are precipitated with a magnesium electrode as magnesium ammonium phosphate (struvite), a high-quality fertilizer.

© Fraunhofer IGB

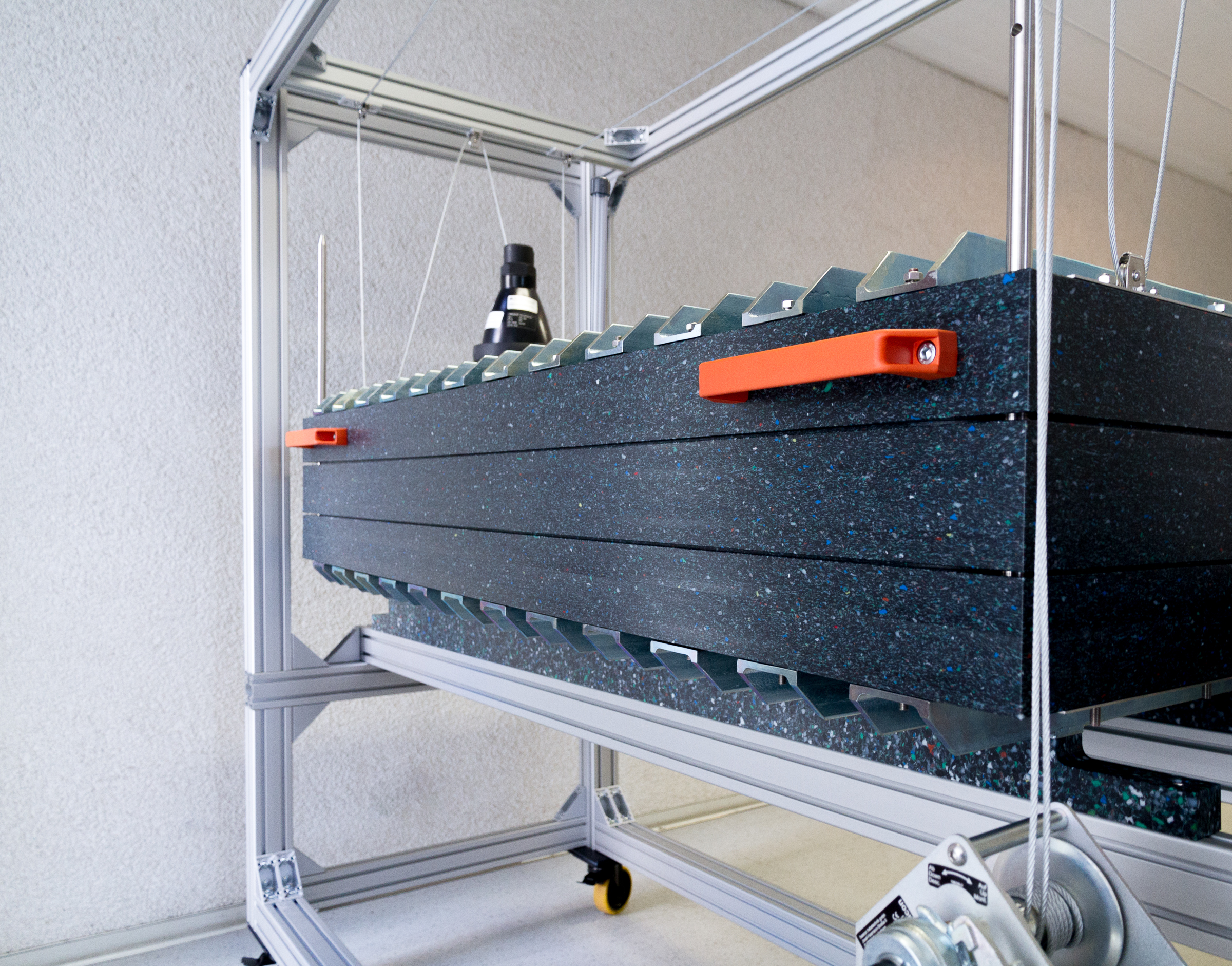

The electrolysis cell ePhos® extracts nitrogen and phosphorus purely electrochemical. The process is very straightforward and doesn’t require to stock chemicals.
